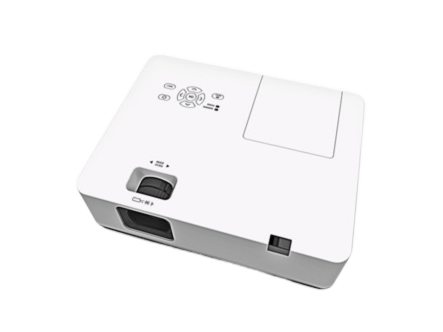

Máy chiếu golf JCVISION JC-H430U

JC-H430U

Panel

Bảng hiển thị

3x0.64”

Công nghệ

3Liquid Crystal Display

Độ phân giải

WUXGA (1920 x 1200)

Lamp

Điện năng tiêu thụ

Philips:225W Infinity(Lamp)

Tuổi thọ bóng đèn (H)

10000H(normal) /20000H(Economic model)

Cường độ sáng

4500 ANSI Lumens

Lens

Focus/Zoom

Manual

Tỉ lệ phóng

70"@1.904m；1.26~2.09：1

F

F1.7x1.66

Tiêu cự (f)

f=17.5~29.01mm

Tỉ lệ thu phóng

1.66x optics

Kích thước màn hình

0.812~13.869m（30"~300"）

Lái ống kính V

N/A

Lens steering H

N/A

Contrast

Độ tương phản (Min)

30000:1
(w/IRIS)

Noise

Noise(dB)@1m

Economic model: 30dB
Normal mode: 37dB

Uniformity

Uniformity(Actual Min)
-JISX6911

90%

Aspect ratio

Tỉ lệ khung hình

16:10 (Standard)/4:3(Compatible)

Interface

Input

VGA

*1

HDMI 1.4

*2

Video

*1

Audio in
（mini jack,3.5mm）

*1

Audio in（L/R）
--RCA

*1

USB-A 2.0

*1

USB-B

*1(Display)

RJ45

*1(Display)

S-Video

*1

Output

VGA

*1

Audio out
（mini-jack,3.5mm）

*1

Control

RS232

*1

RJ45

*1 (Network control)

USB-B

*1(Upgrade only)

Other Interface

N/A

General specifications

Speaker

Speaker

1*10W

Power consumption

Power supply

100~240V@ 50/60Hz

Power consumption
(W)

320

Power consumption
(Economic model)

224

Economy mode standby

<0.5W

Network standby

<2W

Temperature& humidity

Operating temperature

0℃~40℃(≥35℃ enter the economic mode)

Storage temperature

-10℃~~55℃

Operating humidity

20%~85%

Storage humidity

10%~85%

Structural design

Security lock

YES

Password protection

YES

Control panel lock

YES

Kenginston lock

YES

Vent

Side/Side

Lamp replacement method

top

Filter replacement method

Side

Air filter

ESD electrostatic dustproof

Others

Keystone correction

Keystone correction

V: ±30° (automatic + manual)
H: ±15° (manual)
Surface correction/corner

Scanning frequency

Horizontal frequency

15~100KHz

Vertical frequency

24~85Hz

Software settings

Auto configuration

Finding the input source,
automatic computer adjustment, automatic keystone correction, automatic image inversion, 4-angle distortion correction

Auto mute

Yes

Sleep

Yes (default 5 minutes)

Image mode

Dynamic, standard, cinema,
Blackboard (green), color palette

Lamp mode

Normal/Economic Mode

Filter automatic cleaning cycle

100/200/300H

Cooling time

0S,60s,90s

Key lock

YES

High altitude

YES(1400~2700m)

Countdown

Customized-(5S, 10S, 30S...)

Auto Ceiling

YES

Digital zoom

1~33

Size and weight

Dimensions
(WxHxD mm)

345*261*99

Net weight (KG)

~3.46

Carton size
(WxHxD mm)

442*368*195

Gross weight (KG)

4,9
